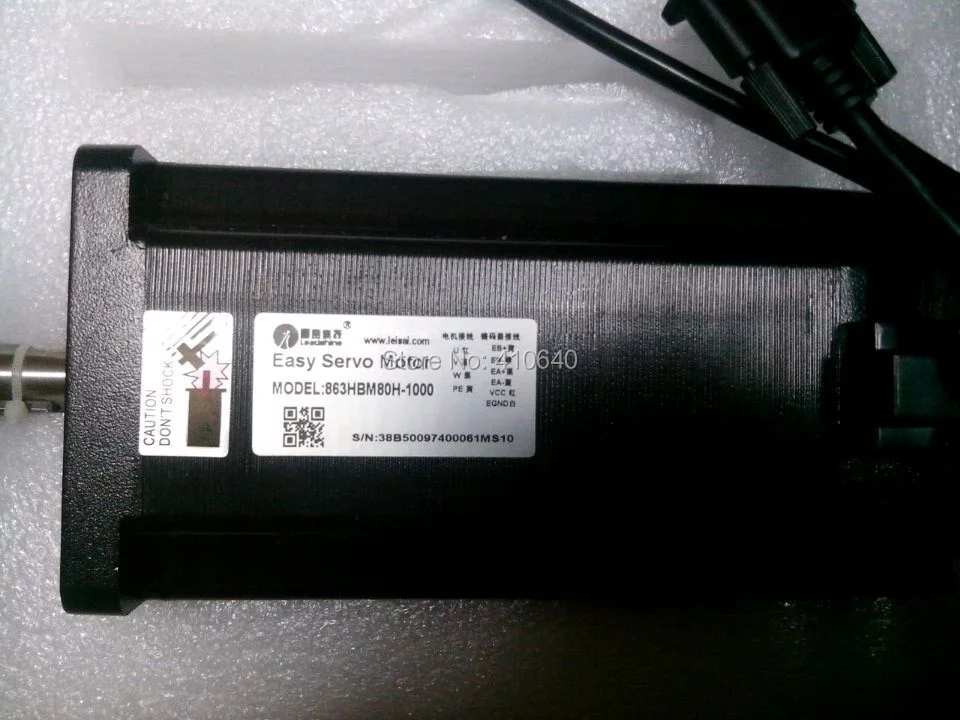

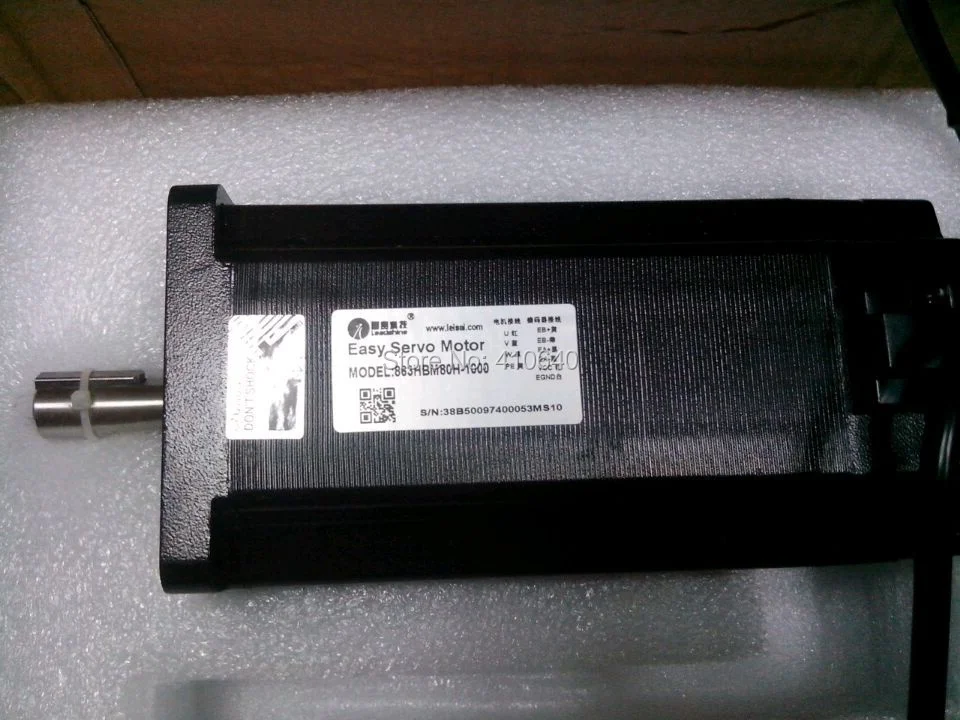

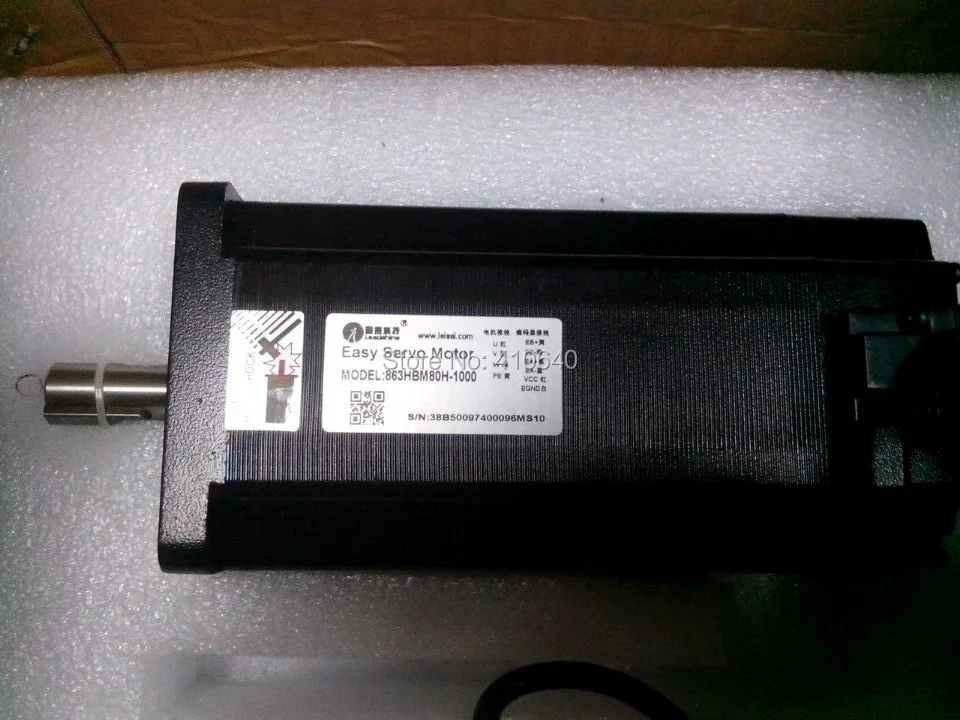

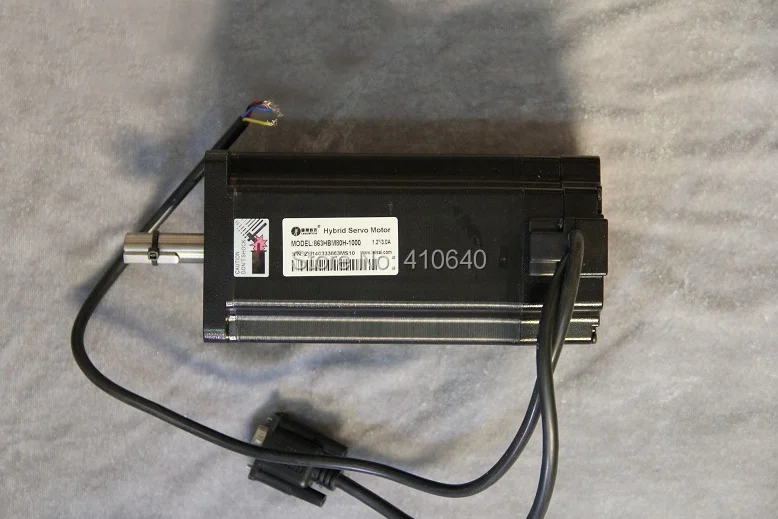

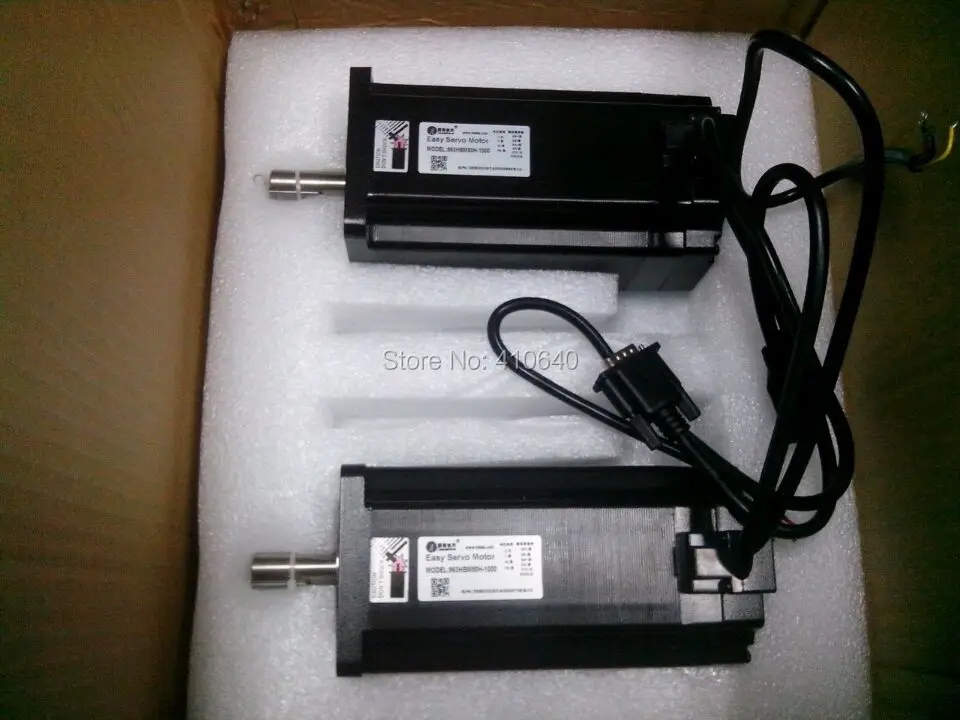

863HBM80H-1000 3 Phase NEMA 34 Easy Servo Motor
The Leadshine 863HBM80H-1000 easy servo motor is a 1,133 oz-in (8.0 N.m) 3-phase NEMA 34 stepper motor with 1,000-line incremental encoder (A , B channels). It is specially designed to be for powered by 220/230 VAC input high voltage easy servo drives.
When driven by Leadshine high voltage easy servo drives (closed loop stepper drives), the position loop between 863HBM80H-1000 and the drive is closed. You will never get stall or loss of steps, often seen in open loop stepper systems. Because there is no torque resolution needed like in open loop stepper systems, you can much better high-speed performance than open loop stepper systems by increasing up to 30%.
With the advanced features of no loss of steps, high torque, no power supply, no overshooting, and plug-and-play setup, the combination of of 863HBM80H-1000 and companion easy servo drive is ideal solution for upgrading open loop stepper systems, or replace expensive / hard to configure traditional brushless servo systems. It has been widely used in many industrial applications such as CNC router, CNC mills, CNC laser, CNC lathe, plasma, textile equipment.
Designed for driving by 220/230 easy servo drives or stepper drives
2-Phase NEMA 34 frame size
1,133 oz-in (8.0 Nm) holding torque
Speed range: 0-3,000 RPM
Integrated 1,000-line incremental encoder with A, B channels
Strong 0.551 inch (14 mm) shaft
Quiet movement and low motor heating & noise
1: The default delivery mehod is based on free shipping by Registered Post Service.
2: Becuase there is the dlivery cost of fluctuation of theDHL,UPS, Fedex or TNT, if you are in need of these faster service, please contact our online consultant, and will offer you lowest cost for these express
3: If you are in need ofother productswith different model, please contact our online sales, will offer youbest priceandlowest delivery cost--based onGENUINE products.
Model: 863HBM80H-1000 = ES-MH33480
Frame Size: NEMA 34
Holding Torque: 8.0 Nm (1133 Oz-in)
Number of Leads: 3
Encoder Resolution: 1,000 Line
Shaft Size: 0.551 inch (14.000 mm)
Targeted Input Voltage :220/230 VAC
Phase Current: 3.0 A
Inductance: 18.33 mH
Resistance: 2.34 Ohm
Rotor Inertia: 0.0564 oz-in-sec2
Length: 6.81 inch (173 mm)
Weight: 12.33 lbs (5.6 kg)
Mechanical Specifications (unit: mm)
