Leadshine легкий серво Двигатель(замкнутый цикл шагового) 3 фазы 1103HBM120H-1000 с 220/230VAC 12 nm 1000 линия энкодера купить в Slare.ru

Описание

Notice:

We only supply genuine Leadshine servo motor drive with reasonable price, if your budget is limit, please contact our service man online and he she will recommend you the low price other supplier.

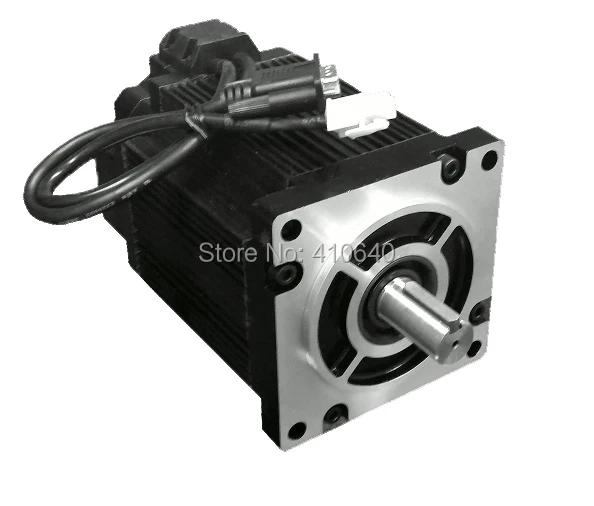

1103HBM120H-1000 3 Phase NEMA 42 Easy Servo Motor

The Leadshine 1103HBM120H-1000 easy servo motor is a 1,700 oz-in (12 N.m) 3-phase NEMA 42 stepper motor with 1,000-line incremental encoder (A , B channels). It is specially designed to be for powered by 220/230 VAC input high voltage easy servo drives (closed loop stepper drives).

When driven by Leadshine high voltage easy servo drives (closed loop stepper drives), the position loop between 1103HBM120H-1000 and the drive is closed. You will never get stall or loss of steps, often seen in open loop stepper systems. Because there is no torque resolution needed like in open loop stepper systems, you can much better high-speed performance than open loop stepper systems by increasing up to 30%.

With the advanced features of no loss of steps, huge torque, no power supply, no overshooting, and plug-and-play setup, the combination of of 1103HBM120H-1000 and companion easy servo drive is ideal solution for upgrading open loop stepper systems, or replace expensive / hard to configure traditional brushless servo systems. It has been widely used in many industrial applications such as CNC router, CNC mills, plasma, textile equipment.

Features:

Designed for driving by 220/230 easy servo drives or stepper drives

3-Phase NEMA 42 frame size

1,700 oz-in (12.0 Nm) holding torque

Speed range: 0-3,000 RPM

Integrated 1,000-line incremental encoder with A, B channels

Strong 0.748 inch (19 mm) shaft

High precision

Quiet movement and low motor heating & noise

Specifications

Model: 1103HBM120H-1000 = ES-MH342120

Frame Size: NEMA 42

Phase: 3

Step Angle: 1.2°

Holding Torque: 12 Nm (1700 Oz-in)

Number of Leads: 3

Encoder Resolution: 1,000 Line

Shaft Size: 0.748 inch (19.000 mm)

Targeted Input Voltage: 220/230 VAC

Phase Current: 4.2 A

Inductance: 13 mH

Resistance: 1.2 Ohm

Rotor Inertia: 0.1551 oz-in-sec2

Length: 6.34 inch (162 mm)

Weight: 18.94 lbs (8.6 kg)

Mechanical Specifications : L= 163mm

Leadshine легкий серво Двигатель(замкнутый цикл шагового) 3 фазы 1103HBM120H-1000 с 220/230VAC 12 nm 1000 линия энкодера

Matching Drive

HBS2206 (click for its detail) equal to : ES-DH2306

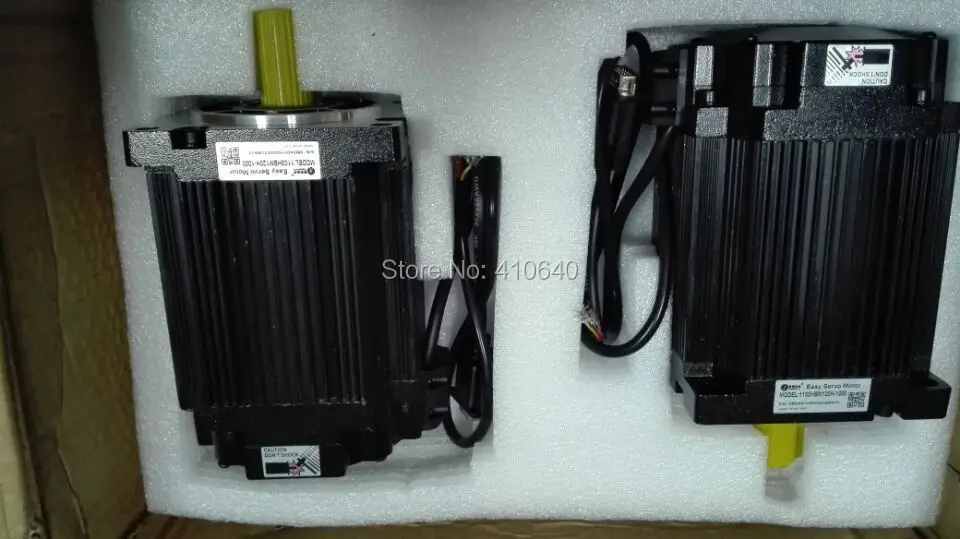

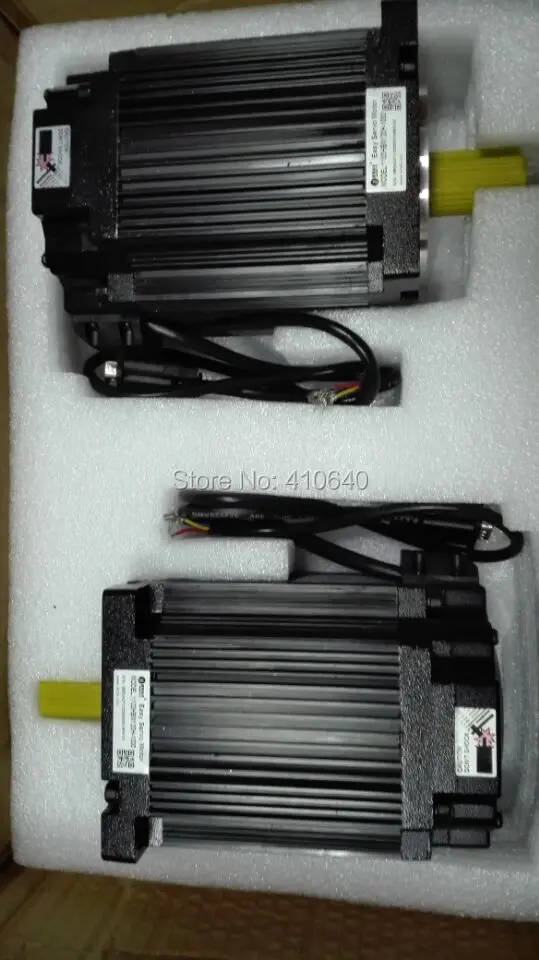

Real Photo

Notice:

1: The default delivery mehod is based on free shipping by Registered Post Service.

2: Becuase there is the dlivery cost of fluctuation of theDHL,UPS, Fedex or TNT, if you are in need of these faster service, please contact our online consultant, and will offer you lowest cost for these express

3: If you are in need ofother productswith different model, please contact our online sales, will offer youbest priceandlowest delivery cost--based onGENUINE products.
