Notice:
We only supply genuine Leadshine servo motor drive with reasonable price, if your budget is limit, please contact our service man online and he she will recommend you the low price other supplier.
3ND2283 3 Phase Stepper Motor Drive
Applications
Engraving machine, labeling machine, cutting machine, laser phototypesetting, plotters, CNC machine tools, handling the devices. In user expectations low vibration, low noise, high speed, high-precision equipment applications excellent special effects.
Features:
High performance, low price, low noise, high speed torque
AC servo drive principle, with AC servo operation characteristics, three-phase sinusoidal current output
Supply voltage up 150-220VAC
Peak output current up to 8.2A (mean 5.8A)
Segmentation accuracy up to 16 stalls optional
3,6 lines can drive three-phase stepper motor
Overvoltage, undervoltage, short circuit, overheating protection function
Optically isolated input differential signal, impulse response frequencies up to 250KHz
With single / dual pulse function, fault signal output function
With a dynamic braking function

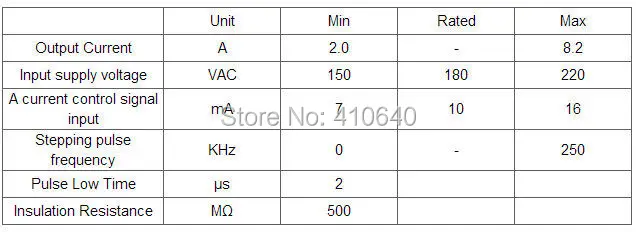

Electrical Specifications
Companion products
NEMA 86 NEMA34 and NEMA42

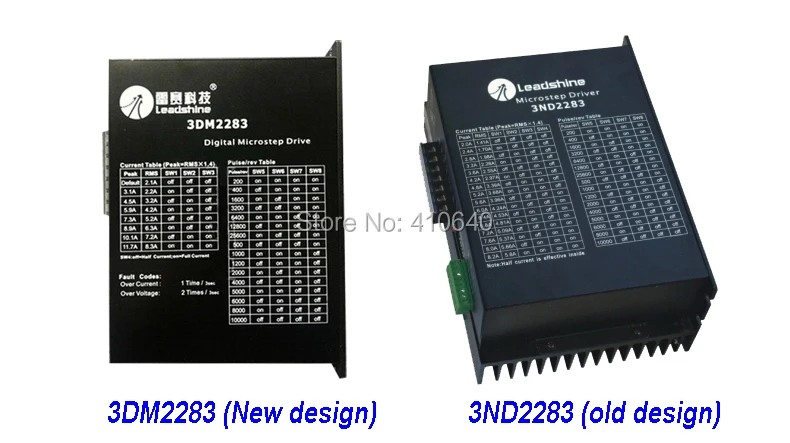

Real Photo
Характеристики
- Тип двигателя
- Шаговый электродвигатель
- Номер модели
- 3ND2283
- Питание
- DC
- Voltage
- 150~220 VDC
- Current
- 2~8.2 A
- Phase
- 3
- Stepping pulse frequency
- 250 Khz
- Isolation Resistance
- 500M Ohm
- Protection
- Over-current, over-voltage, and stall
- is_customized
- Yes
